I decided to finally fix the network issues with my proxmox server (old static ip and used vlans which I hadn't setup with the new switch and router) as I had some time today but after fixing that fairly easily I discovered that my main 2.23 TB zpool had a drive failure. Thankfully I had managed to stuff 3 disks into the case before so loosing one meant no data loss (thankfully 😬; all my projects from the last 5 years as well as my entire video archive is on this pool). I still have 3 more disks of the same type so I can swap in a new one 2 more times after this.

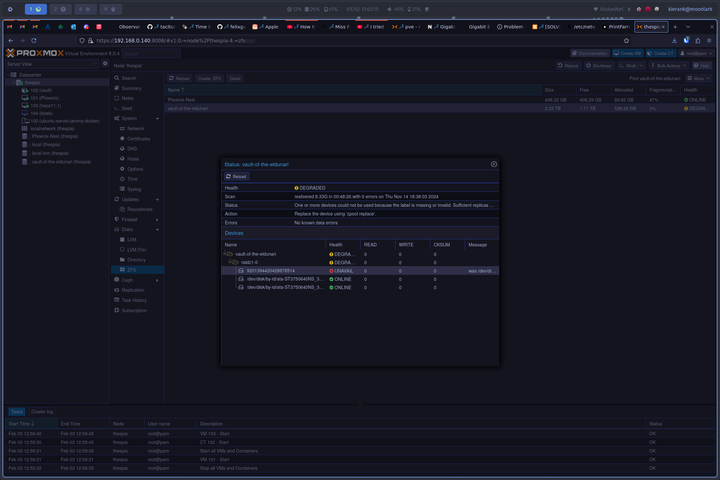

{caption="That really scared the pants off me when I first saw it 😂"}
Actually fixing it#
First I had to find the affected disk physically in my case. Because I was stupid I didn't bother to label them but thankfully the serial numbers of the drives are stuck to them with a sticker so that wasn't terrible.
{{ img(id="https://hc-cdn.hel1.your-objectstorage.com/s/v3/a6512def9bbeedbc1315a8ee58c92fbfb9e4d169_0image_from_ios.jpg" alt="chick-fil-a macaroni and cheese with 2 nuggets and some ketchup" caption="(By this point I had spent 30 minutes moaning so I went to lunch)") }}
Now we can run lsblk -o +MODEL,SERIAL to find the serial number of our new drive.
root@thespia:~# lsblk -o +MODEL,SERIAL
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS MODEL SERIAL
sda 8:0 0 698.6G 0 disk ST3750640NS 3QD0BG0J
├─sda1 8:1 0 698.6G 0 part
└─sda9 8:9 0 8M 0 part
sdb 8:16 0 698.6G 0 disk ST3750640NS 3QD0BN6V
sdc 8:32 0 698.6G 0 disk ST3750640NS 3QD0BQ5G
├─sdc1 8:33 0 698.6G 0 part
└─sdc9 8:41 0 8M 0 part
sdd 8:48 1 111.8G 0 disk Hitachi HTS543212L9SA02 090130FBEB00LGGJ35RF
├─sdd1 8:49 1 1007K 0 part
├─sdd2 8:50 1 512M 0 part /boot/efi
└─sdd3 8:51 1 111.3G 0 part
├─pve-swap 253:0 0 8G 0 lvm [SWAP]
├─pve-root 253:1 0 37.8G 0 lvm /
├─pve-data_tmeta 253:2 0 1G 0 lvm
│ └─pve-data-tpool 253:4 0 49.6G 0 lvm
│ ├─pve-data 253:5 0 49.6G 1 lvm
│ ├─pve-vm--100--cloudinit
│ │ 253:6 0 4M 0 lvm
│ ├─pve-vm--101--cloudinit
│ │ 253:7 0 4M 0 lvm
│ ├─pve-vm--103--disk--0
│ │ 253:8 0 4M 0 lvm
│ └─pve-vm--103--disk--1
│ 253:9 0 32G 0 lvm
└─pve-data_tdata 253:3 0 49.6G 0 lvm
└─pve-data-tpool 253:4 0 49.6G 0 lvm
├─pve-data 253:5 0 49.6G 1 lvm
├─pve-vm--100--cloudinit
│ 253:6 0 4M 0 lvm
├─pve-vm--101--cloudinit
│ 253:7 0 4M 0 lvm
├─pve-vm--103--disk--0
│ 253:8 0 4M 0 lvm
└─pve-vm--103--disk--1
253:9 0 32G 0 lvm
sde 8:64 0 465.8G 0 disk WDC WD5000AAKS-65YGA0 WD-WCAS83511331
├─sde1 8:65 0 465.8G 0 part
└─sde9 8:73 0 8M 0 part
sdf 8:80 1 0B 0 disk Multi-Card 20120926571200000
zd0 230:0 0 32G 0 disk
├─zd0p1 230:1 0 100M 0 part
├─zd0p2 230:2 0 16M 0 part
├─zd0p3 230:3 0 31.4G 0 part
└─zd0p4 230:4 0 522M 0 part
zd16 230:16 0 80G 0 disk
├─zd16p1 230:17 0 1M 0 part
└─zd16p2 230:18 0 80G 0 part
zd32 230:32 0 4M 0 disk
zd48 230:48 0 80G 0 disk
├─zd48p1 230:49 0 1M 0 part
└─zd48p2 230:50 0 80G 0 part
zd64 230:64 0 32G 0 disk
├─zd64p1 230:65 0 512K 0 part
└─zd64p2 230:66 0 32G 0 part
zd80 230:80 0 1M 0 disk
Our two current drives are 3QD0BG0J and 3QD0BQ5G as we can see in proxmox but we can also see that they have partitions and sdb/3QD0BN6V does not so thats our target drive. Now we can find the disk by id with ls /dev/disk/by-id | grep 3QD0BN6V which gives us:
ls /dev/disk/by-id | grep 3QD0BN6V
ata-ST3750640NS_3QD0BN6V

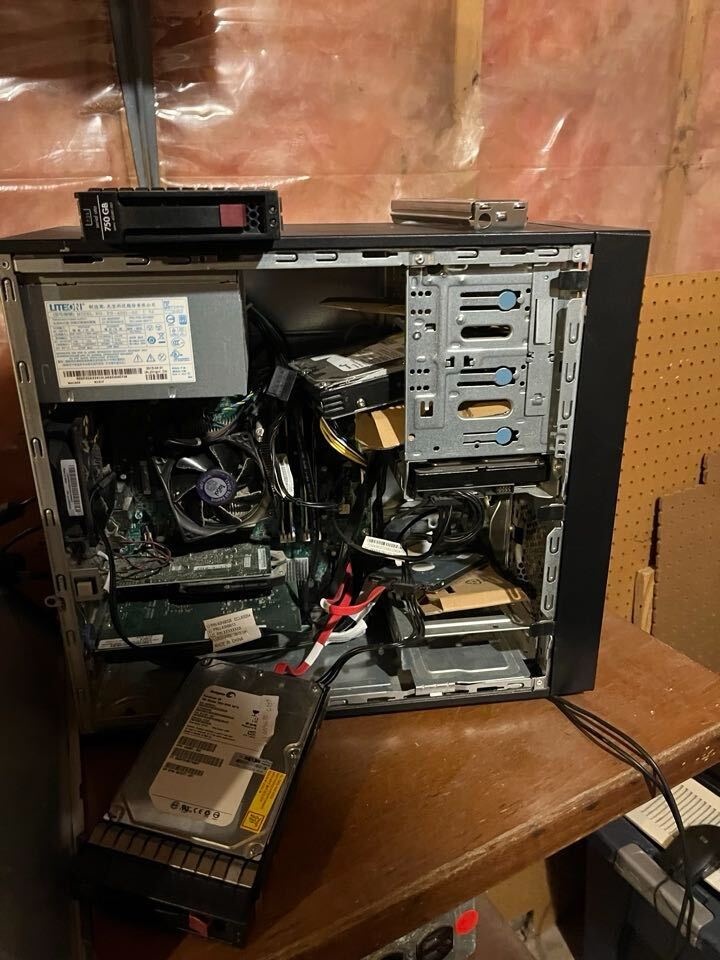

{caption="My case situation is a bit of a mess and I'm using old 7200rpm server drives for pretty much everything; the dream is a 3 drive 2 TB each m.2 nvme ssd setup, maybe someday 🤷"}
We are going to go with the first id so no we move on to the zfs part. Running zpool status vault-of-the-eldunari we can get the status of the pool:
zpool status vault-of-the-eldunari
pool: vault-of-the-eldunari
state: DEGRADED
status: One or more devices could not be used because the label is missing or
invalid. Sufficient replicas exist for the pool to continue
functioning in a degraded state.
action: Replace the device using 'zpool replace'.
see: https://openzfs.github.io/openzfs-docs/msg/ZFS-8000-4J
scan: resilvered 8.33G in 00:48:26 with 0 errors on Thu Nov 14 18:38:03 2024
config:
NAME STATE READ WRITE CKSUM
vault-of-the-eldunari DEGRADED 0 0 0
raidz1-0 DEGRADED 0 0 0
9201394420428878514 UNAVAIL 0 0 0 was /dev/disk/by-id/ata-ST3750640NS_3QD0BM29-part1
ata-ST3750640NS_3QD0BQ5G ONLINE 0 0 0
ata-ST3750640NS_3QD0BG0J ONLINE 0 0 0
errors: No known data errors
We can add our new disk with zpool replace vault-of-the-eldunari 9201394420428878514 ata-ST3750640NS_3QD0BN6V but first we wipe the disk from proxmox under the disks tab on our proxmox node to make sure its all clean before we restore the pool after we do that we also initalize a new gpt table. Now we are ready to replace the disk. Running this command can take quite a while and it doesn't output anything so sit tight. After waiting a few minutes proxmox reported that resilvering would take 1:49 minutes and it was 5% done already! I hope this helped at least one other person but I'm mainly writing this to remind myself how to do this when it inevitably happens again :)

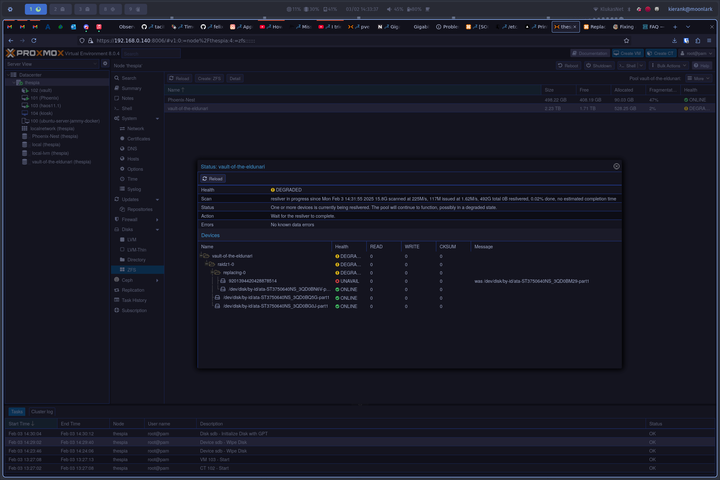

{caption="It's slow but faster then I expected for HDDs"}
