PxlBoard#

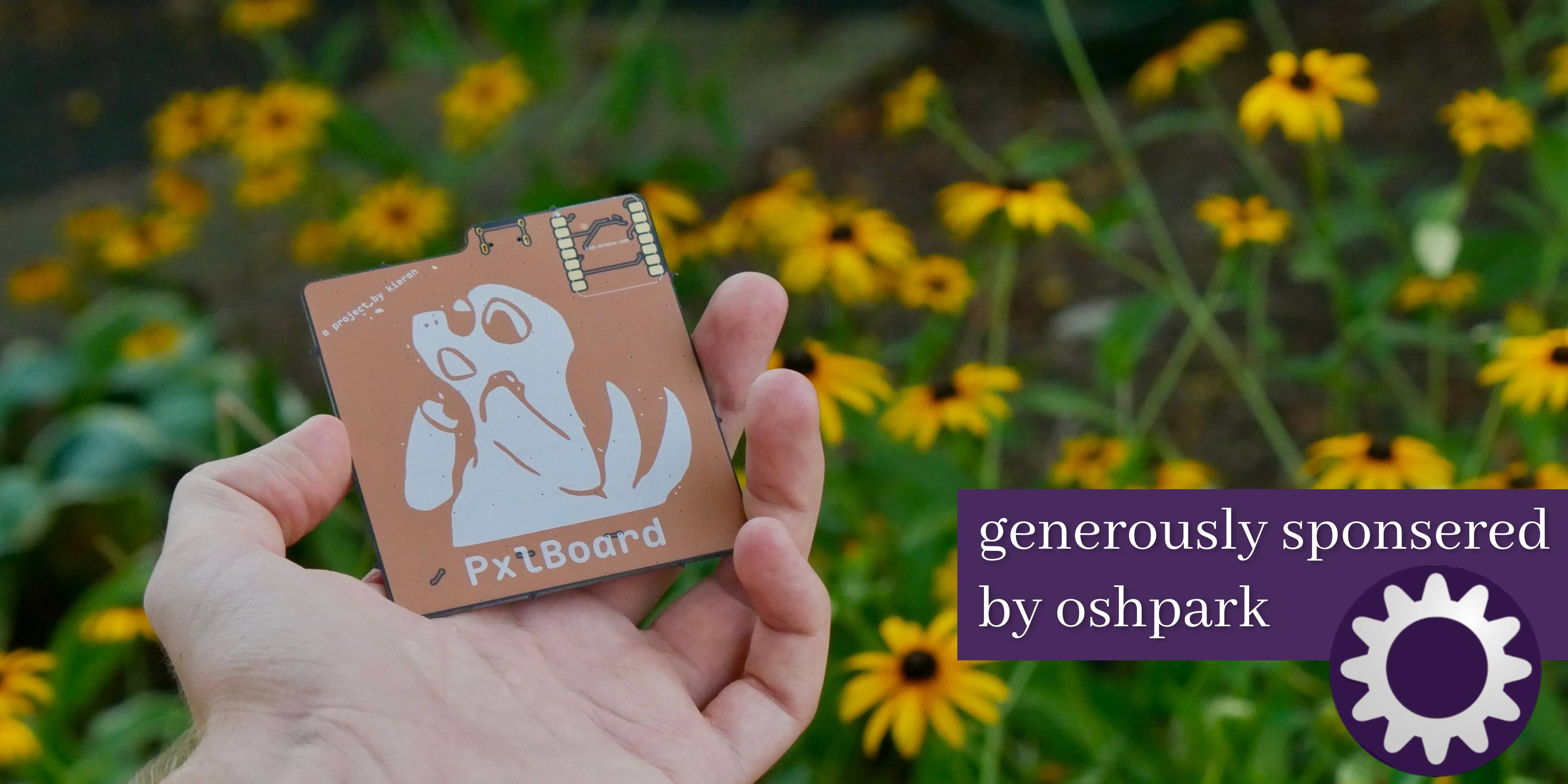

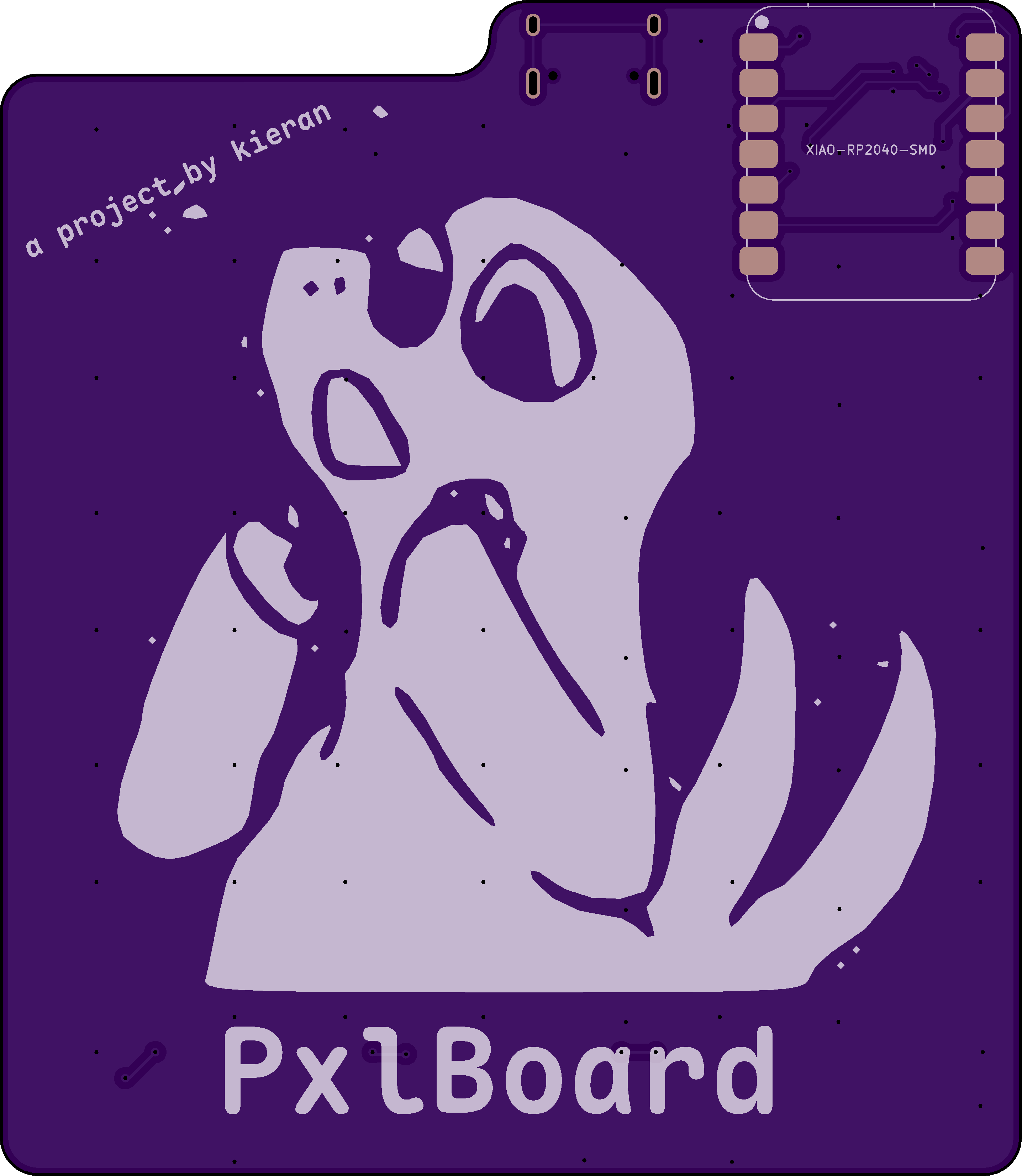

the back of the pcb held in my hand over some black eyed susans

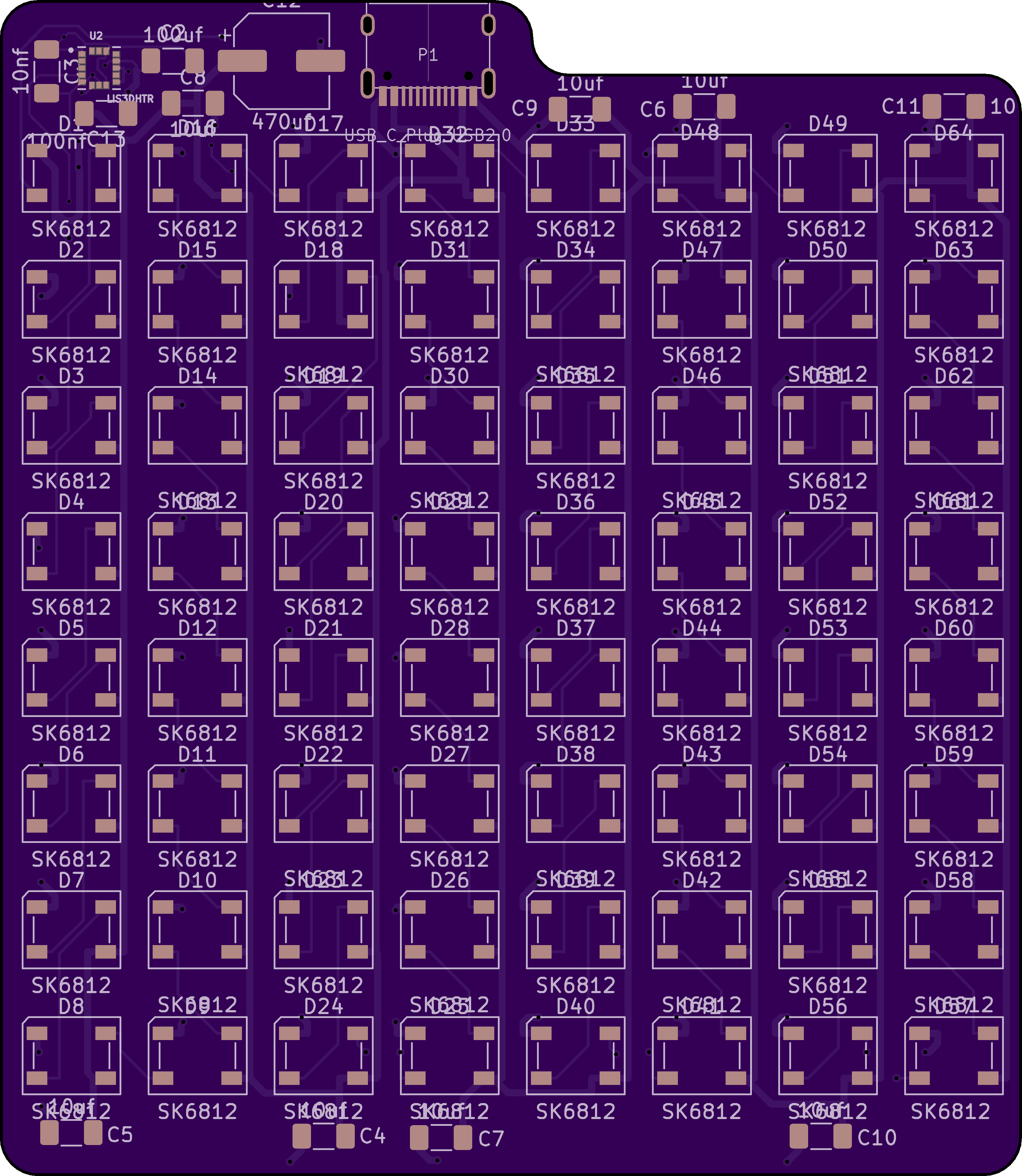

BOM#

Part Quantity Price LCSC Notes
PCB (OSHPark) 1 $47.25 Purple PCB; Most expensive manufacturer but also looks gorgeous
PCB (JLCPCB) 1 $24.82 Custom PCB - Green; Mid-range price
PCB (PCBWay) 1 $12.80 Custom PCB - Various colors; Most affordable option (kinda suprisingly?)
Seeed XIAO RP2040 1 $3.99 Seeed Studio Brain of the operation
SK6812 LEDs 65 $6.40 C5380879 RGB addressable LEDs; $0.0985 each, forms the 8x8 grid
LIS3DHTR Accelerometer 1 $0.60 C15134 3-axis accelerometer; same as the one used on the spark tilt jam
Capacitor 100nF - ceramic 20 (min size) need 1 $0.29 C24497 1206 package
Capacitor 10uF - ceramic 10 (min size) need 9 $0.34 C13585 1206 package
Capacitor 10nf - ceramic 20 (min size) need 1 $0.23 C1846 1206 package
Capacitor 100uF - electrolytic 5 (min size) need 1 $0.87 C1954161 1206 package
Capacitor 470uF - polymer 5 (min size) need 1 $0.59 C41410213 10V 470uF Polymer ±20% SMD,D6.3xL9mm Polymer Aluminum Capacitors ROHS
USB-c connector 5 (min size) need 1 $0.87 C165948 5A 1 16P Female Type-C SMD USB Connectors ROHS

Total (with pcbway): ~$28.25

Schematics#

If you want an iteractive version use kicanvas!

schematic

Pinout#

XIAO RP2040 Connections#

XIAO Pin Connected To Description
D0/GPIO26/A0 - Unused
D1/GPIO27/A1 - Unused
D2/GPIO28/A2 - Unused
D3/GPIO29/A3 - Unused
D4/GPIO6/SDA LIS3DHTR SDA I2C Data Line
D5/GPIO7/SCL LIS3DHTR SCL I2C Clock Line
D6/GPIO0/TX - Unused
D7/GPIO1/RX NEOPIXEL_SIG LED Data In
D8/GPIO2/SCK - Unused
D9/GPIO4/MISO - Unused
D10/GPIO3/MOSI - Unused
3V3 LIS3DHTR VDD_IO 3.3V Power
GND LIS3DHTR GND, LEDs GND Ground
5V LEDs VDD 5V Power

LIS3DHTR Accelerometer#

LIS3DHTR Pin Connected To Description
VDD 3.3V Power Supply
VDD_IO 3.3V Interface Power
GND GND Ground
SDA XIAO D4 I2C Data
SCL XIAO D5 I2C Clock
INT1 - Interrupt (not used)
INT2 - Interrupt (not used)
