Tern#
a drone thats as fast as the wind (or at least faster than me)#
Tactical ELRS based Remote Newton
BOM#
| Part | Quantity | Price | Link | Notes |
|---|---|---|---|---|
| dji goggles n3 | 1 | $229 | dji | |
| air unit pro | 1 | $229 | b&h | |
| ikon 3.5 evo frame | 1 | $43.95 | avion rc | |
| radiomaster elrs transmitter | 1 | $18.99 | getfpv | |
| xing2 1404 motors | 4 | $23.49 | getfpv | |
| Gemfan 3525 props | 2 | $3.49 | getfpv | |
| speedybee f405 aio | 1 | $55.99 | speedybee | comes with the screws, standoffs, xt30 pigtail, and dji pigtail |
| vifly finder 2 beeper | 1 | $19.49 | getfpv | |
| BetaFPV Lava Series 4s 850mah | 1 | $41.99 | betafpv | |
| ShortSaver v2 | 1 | $12.99 | amazon |
Total: $752.24
Subtotal (without DJI equipment): $294.34
Split by store:
GetFPV: $157.04
Avion RC: $73.95
SpeedyBee: $81.19
DJI: $229
B&H: $247.32
Amazon: $12.99
BetaFPV: $54.99
All together with tax and shipping: $856.48
Build Notes#

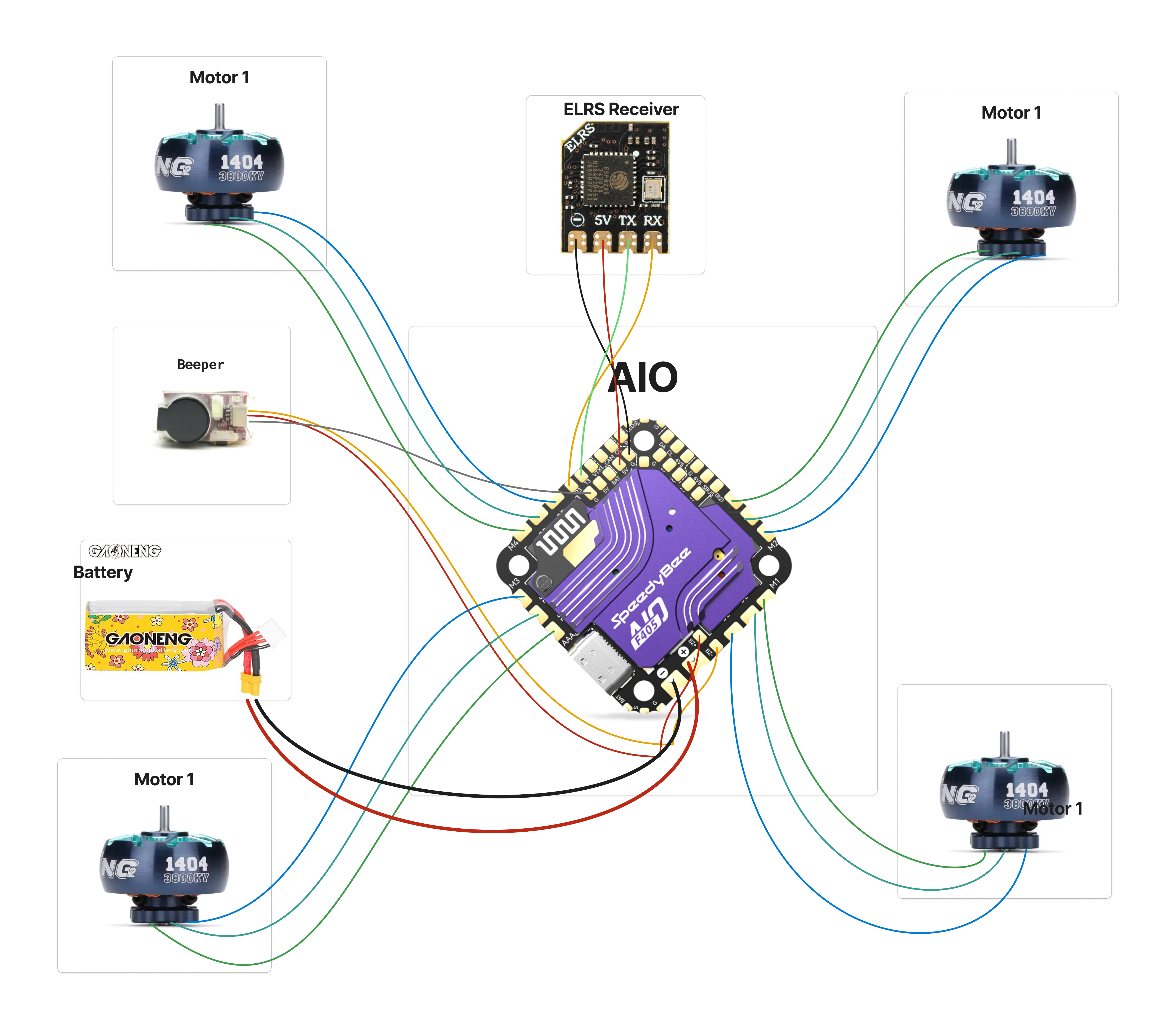

The wiring digram is on figma as well as in the image right below this.
I'll stick some stuff here eventually
